lmx 64: key features
- Class 2 ebike certification - limited to 750W & 20 mph (32 km/h) top speed
- Modifiable to 2,500W & 30 mph (50 km/h) top speed (off-road use only)
- Dual transmission - separate drives for pedal & motor
- Motorcycle-style handlebar-mounted throttle
- 3 riding modes
- 62 mile/100 km max battery range
- Rockshox suspension
- Designed & manufactured in France
- MSRP: $7,499 USD/$9,999 CAD

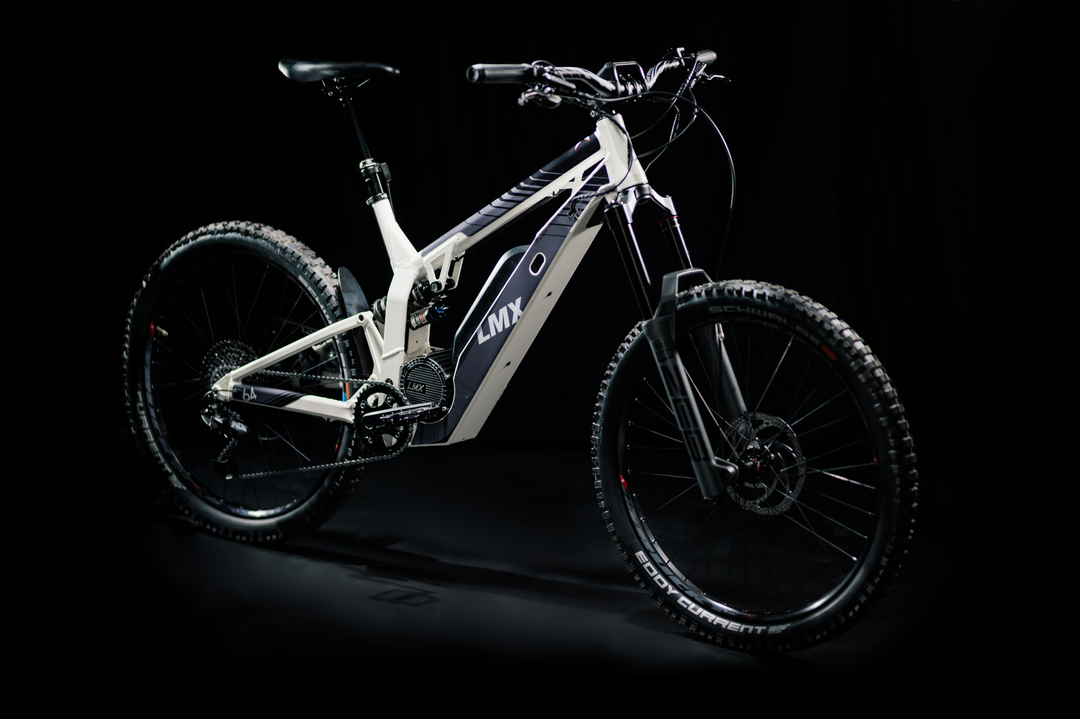

a Class 2 Ebike with trail performance
The LMX 64 is a Class 2 ebike in North America, with restricted power and a top speed of 20 mph (32 km/h). However, off-road riders and racers can unleash more power and speed for off-road or competition use.

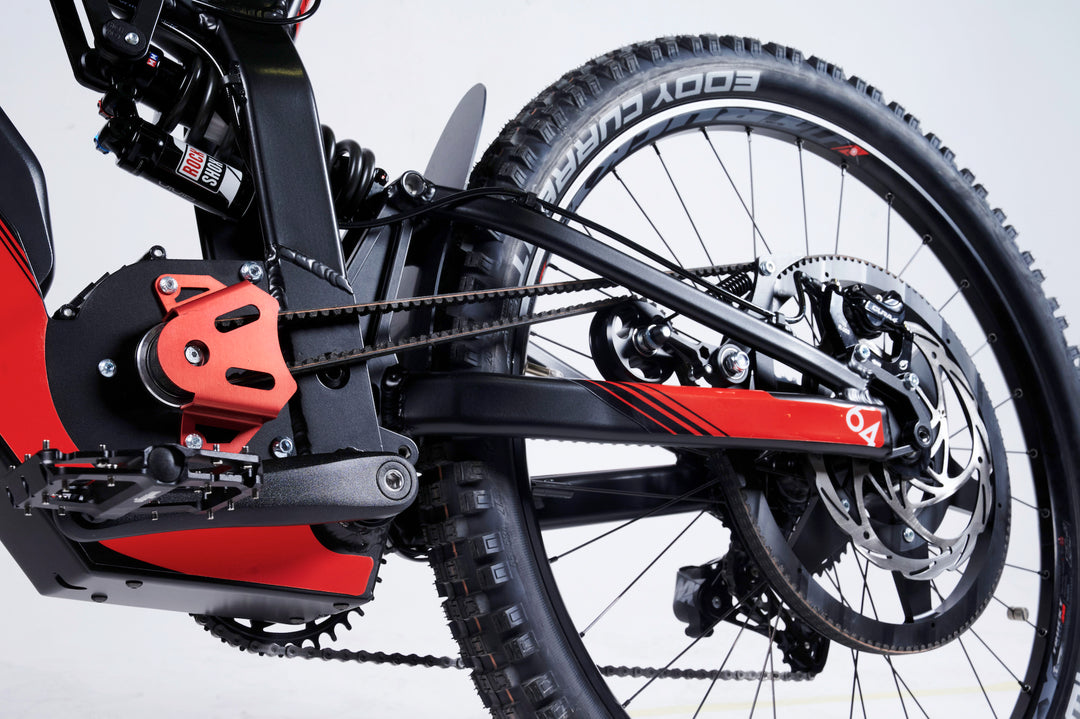

Dual Freewheel Transmission
LMX’s exclusive dual freewheel transmission features a conventional pedal chain drive on the right side and a motor-driven belt drive on the left to reduce stress on the chain drive.

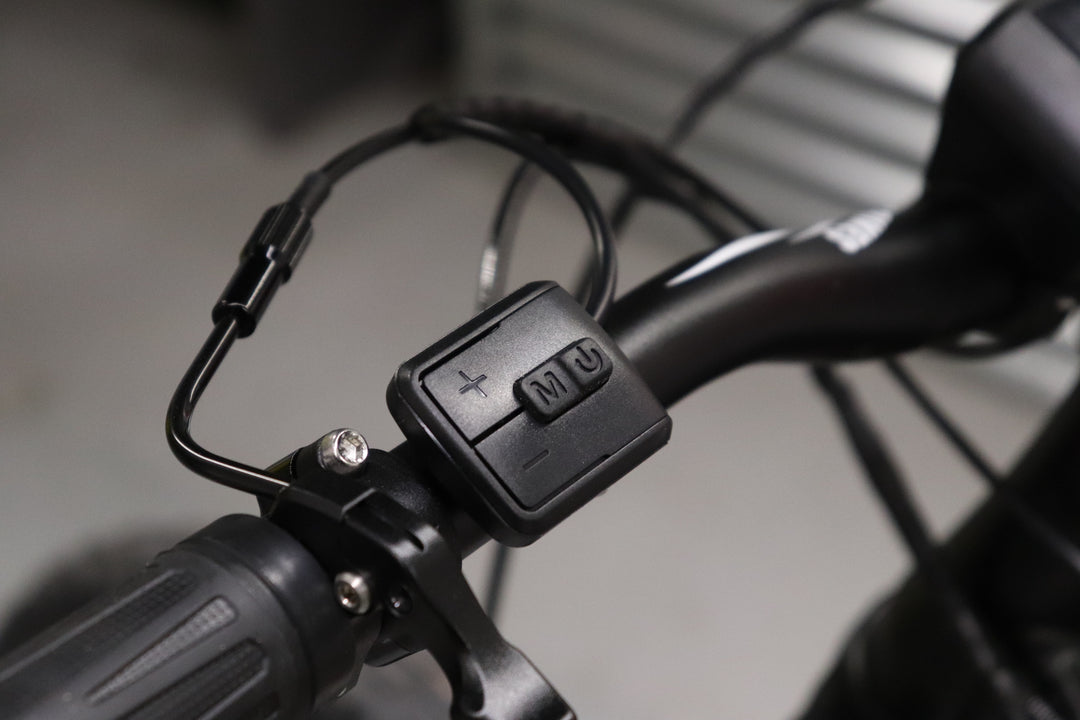

throttle or pedal
Choose various levels of pedal assistance, or give your feet a break and use the handlebar-mounted throttle to get you where you need to be.
hand-built in france
LMX designs, manufactures and assembles all of its ebikes in its factory near Lyon, France. Quality materials and attention to detail allow LMX to build bikes that are lightweight, performance-oriented and durable in off-road conditions.

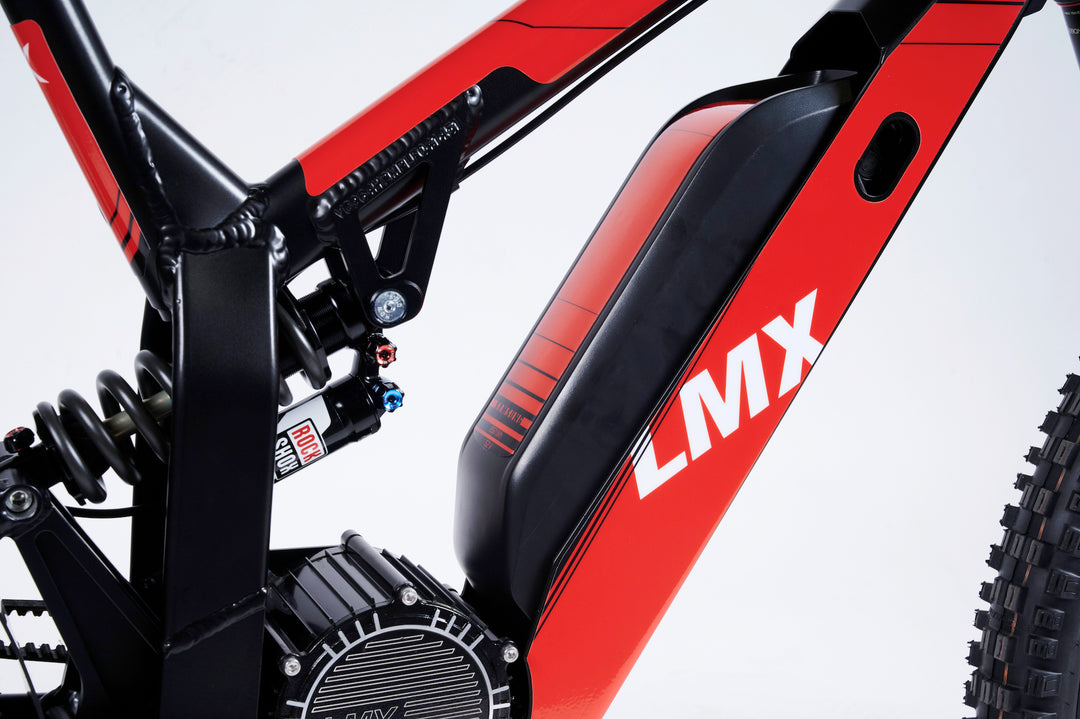

Advanced Battery Performance & Range
The removable 52V, 850wH battery offers up to 100 km of range in pedal-assist mode and up to 35 km using just the throttle. Maximum charge time is 5 hours.
3 riding modes
Choose between 3 levels of pedal assistance, or give yourself a break and use the motorcycle-style handlebar throttle to propel you through city streets and off-road trails.

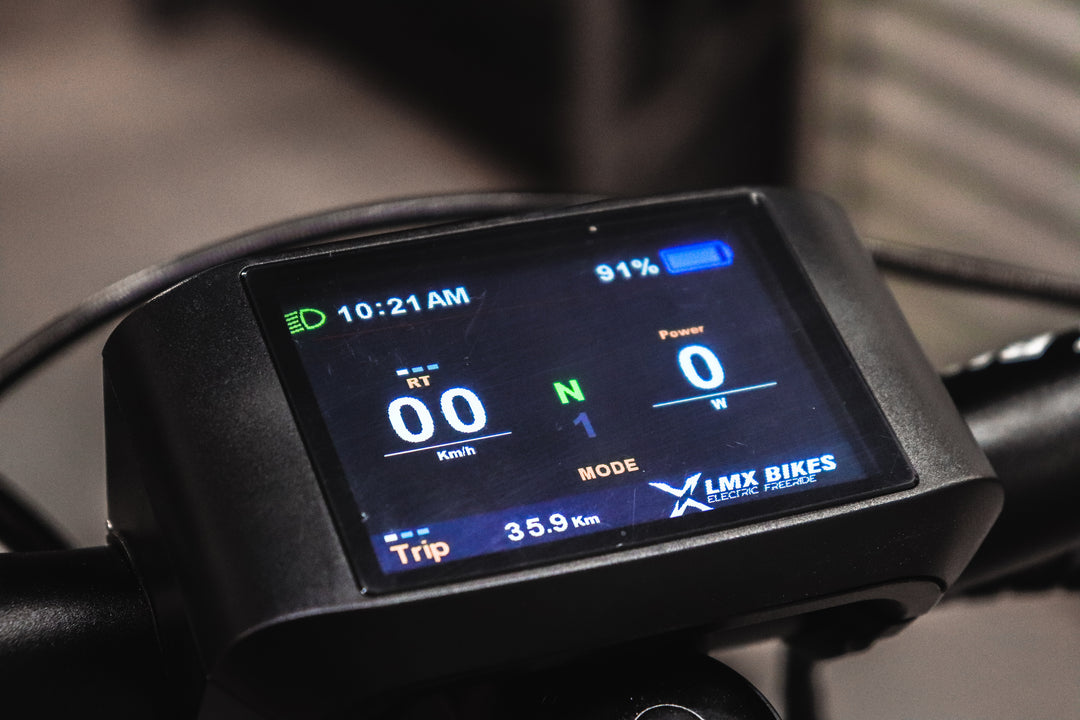

color display
A color display screen is centrally mounted on the handlebar to provide easy-to-read information regarding speed, power output, riding mode, distance, battery level and more.
quality
built to perform - and last
LMX has earned a reputation for quality and performance. Frames are built with aircraft-grad 6061-T6 aluminum, and components are sourced from high-end brands like Rockshox, Bos, Schwalbe and Formula Cura. Quality is never compromised.
Get it first.
SPECIFICATIONS
GENERAL
| CLASS |
Class 2 (USA & Canada) |
|---|---|
| MOTOR |
Brushless mid-mounted LMX (2,500W) |
| POWER |
750W (USA), 500W (Canada), max 2,500W (off-road use only) |
| TRANSMISSION |
Patented dual transmission (chain & belt) |
| ASSISTANCE |
Pedal assistance + handlebar throttle |
| MAX SPEED |
Assistance up to 20 mph (32 km/h)/28 mph (45 km/h) for off-road use |
| REMOVABLE BATTERY |
52V, 850wH |
| CONTROLLER |
Advanced FOC |
CHASSIS
| WEIGHT |
64 lbs (29 kg) |
|---|---|
| FRAME |
High-resistance 6061-T6 aluminum |
| COLOR |
Black/red, black/grey, white/grey |
| SUSPENSION |
RockShox ZEB fork, Rockshox Vivid R2C rear shock |
| SUSPENSION TRAVEL |
180 mm front/rear |
| STEERING ANGLE |
65° |
| SEAT TUBE ANGLE |
76° |
| REACH |
500 mm (L size) |
| WHEELS |
Mach 1 Trucky 30 27.5″ |
| TIRES |
Schwalbe Eddy current 2.6″ |
| FLIP CHIP |
Allows adjustment of steering angle +/- 1 ° and the height of the bottom bracket by 8 mm |
| SEATPOST |
Telescopic |
| BRAKES |
Formula Cura 4-e, four-piston calipers, 203 mm discs |
DRIVETRAIN
| CASSETTE |
SRAM 11 speed 38 -11/42. Engine side : reinforced chain or belt |
|---|---|
| CRANKSET |
340 mm (height) |
| CRANKS |
170 mm |
| BELT |
Carbon-fibre reinforced |
| PEDALS |
Wellgo premium aluminum pedals |
